Magazine bar feeder

Magazine bar feeder

October 1, 2018

Edge Technologies

http://www.edgetechnologies.com
Automation Material Handling

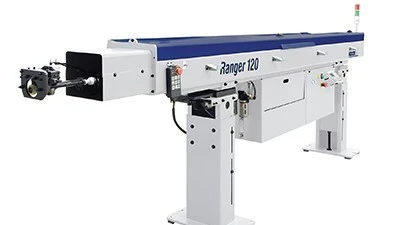

St. Louis, Missouri – The Ranger 112 is the newest Scroll Feed magazine bar feeder for feeding round, square, and hexagonal bar stock in a diameter range of 1.5mm to 15mm and lengths up to 12ft into CNC lathes. A two-pusher system reduces the overall length of the unit by as much as 4ft. A short pusher pre-feeds the bar then retracts, then a second full-length pusher lowers into position to continue the feeding process. The Ranger 112’s double pusher system is propelled by a toothed belt for accuracy, as well as smooth quiet running. Maximum adjustable feeding speed is 600mm per second and maximum adjustable return speed is 1,000mm per second. This feeder is compatible with all types of sliding or fixed, CNC or cam operated lathes.

The Scroll Feed system ensures proper and consistent loading of 1.5mm to 15mm bar stock. The Scroll Feed bar device has a storage capacity of 16 bars. Small diameter bar stock, along with the accuracy of the Scroll Feed system, makes the Ranger 112 ideally suited for the medical and electronics industries.

As a standard feature on the Ranger 112, the synchronization device for Swiss style lathes employs an electro-magnetic coupling, mechanically linking the lathes headstock’s Z-axis travel to the bar feeder’s pusher, ensuring synchronous movement and no loss of connection between the bar stock and pusher collet.

Dual anti-vibration devices stabilize the bar stock at two critical points between the guide channel and lathe spindle maximizing RPM potential. Its adjustable roller design provides superior support and easy set-up of all bar diameters without the cost of multiple bearing blocks.

The Ranger 112 features a 1.5mm to 15mm bar diameter capacity with hydrodynamic quick-change polyurethane guide channels. The channel is flooded with oil to create a hydrodynamic effect to support the rotating bar resulting in the ability to run at higher RPM with reduced noise and vibration. The top guide channel is profiled for all bar stock sizes. The “U” shaped bottom guide channel sections slide easily out of their base. To make the change for a new channel size, a new section is inserted, a screw is tightened, and the Ranger 112 is ready to run a new bar stock diameter.

The Ranger 112 features the convenience of an easy-to-use remote-control pendant with a Mitsubishi control and servo drive that provides the Ranger’s motion control and functionality. Functions include: manual and automatic operation, manual load/unload of bar stock for set-up and/or change over, movement of bar pusher, and the emergency stop. The control is easy to program, yet flexible enough for all applications. Parameters are set through simple F functions. Alarms are well defined and displayed on the operator control panel; panel swings out for ease of use.

The Ranger 112’s bar remnants are withdrawn to the back end of the magazine and a gripper extracts it out of the collet and deposits it in a remnant basket. The gripping device is used to both insert the new bar into the bar stock collet and to extract the remnant. It is not necessary to chamfer the bar if it is cleanly cut. No adjustment for bar size is necessary and it is completely self-centering. Bar pusher collet changes can be done less than 2 minutes.
