Titanium cut burs

Titanium cut burs

April 12, 2017


Grinding/Abrasives Tooling/Cutting Turning/Milling

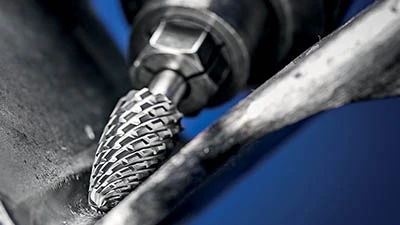

Milwaukee, Wisconsin – TITANIUM cut burs, the latest addition to the high-performance Carbide Bur line-up, is designed for machining hard titanium alloys with tensile strength greater than 500N/mm2. With an innovative tooth geometry, TITANIUM cut generates stock removal rates up to 60% higher than conventional cross-cut burs. This results in a smooth milling action with significantly reduced vibrations and noise for comfortable, ergonomic working conditions. TITANIUM cut's superior surface finish and higher metal removal rates also offers longer tool life and reduced labor costs.

The high performance, double-cut burs with facet and chip breaker generate large, easy to handle chips. Suitable for electric or pneumatic straight grinders and automated equipment, applications include milling, chamfering, contouring, and weld dressing. Other applications include work with structural components, thin-walled tubing in chemical processing, and with components requiring extremely high corrosion resistance.

TITANIUM cut burs have a recommended cutting speed range of 850sfpm to 1,500sfpm. They are available in cutting head diameters of 3/8" with a 2-1/2" length and 1/2" dia. with a 2-3/4" length. Both have a shank diameter of 1/4". Rotational speed is up to 14,000rpm for the 3/8" model and 12,000rpm for the 1/2" dia. size.

Pferd Inc.
