Rotary ball spline

Rotary ball spline

March 14, 2017

NB Corporation of America

http://www.nbcorporation.com

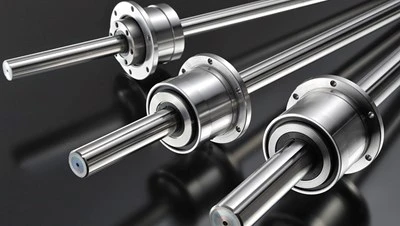

The NB rotary ball spline has a nut that rolls on the ball spline shaft making it capable of both linear and rotary motion, providing sub-millimeter accuracy every time.

There is a lot of torque acting on a robotic arm. A ball spline’s forte is the transfer of torque. In addition, it can even be customized so cabling can run the length of the robotic arm by using a hollow shaft ball spline.

For greater load rating without increasing the size of the machine, you can specify a ball spline with cross rollers as opposed to balls in the rotary motion.

Source: NB Corporation of America
