Pegasus Series 1 linear ball bearings

Pegasus Series 1 linear ball bearings

September 7, 2017

LM76

http://www.lm76.com
Design Components Motion Control

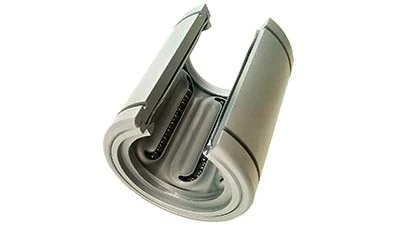

E. Longmeadow, Massachusetts – Pegasus Series 1 linear ball bearings can be counted on to perform. In some applications, linear bearings will not move for days, weeks, months, or even years, however, when called on to perform they must work as if they just came out of the box. Pegasus Series 1 features silicon nitride (SiNi) ceramic balls in a shell with retainer and end caps all made from 440 stainless steel and then Armorloy coated.

SiNi was selected for the balls because it is 40% lighter than steel, inert to chemicals (vapors, sea water, caustic washing, and sterilizing solutions), capable of higher speeds and higher loads (RC78 hardness), FDA compliant (used in surgical instruments), and does not corrode or support electrolysis.

The shell, bearing retainer and end caps are made from 440 stainless steel and coated with Armoloy thin dense chrome (TDC). Armoloy is a hard (78Rc), coating with a micro-nodular surface texture. The coating's nodular finish reduces the amount of surface area in contact with the SiNi balls reducing friction and extending life.

Pegasus Linear Bearings are available 2 series (closed and open), and in 4 sizes (1.000", 1.250", 1.500", and 2.000"). Dynamic load rating for these bearings are 1.000", 220 lb; 1.250", 352 lb; 1.500", 490 lb; and 2.000", 858 lb. Bearings are designed for zero clearance on Class L linear shafting. For maximum performance, LM76 case-hardened 440 stainless steel shafting with Armoloy coating is recommended.
