Air powered motor vises

Air powered motor vises

April 12, 2018

Kurt Workholding

http://www.kurtworkholding.com
Toolholding/Workholding

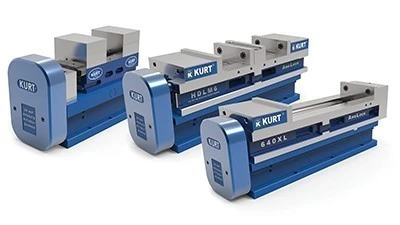

Minneapolis, Minnesota – Kurt’s motorized air vises use air powered motors to provide consistent preset clamping force and programmable vise opening. These vises are for automated, robotized cells, and applications requiring consistent clamping not easily attained by manual operation.

Using an optional 3mm proximity sensor, the Kurt air powered motor vise can be set to open and stop precisely at preconfigured positions. Operates on 20psi to100psi and clamps to stall. Desired clamp force is attained through an air FRL setting. The vises utilize push-to-connect air fittings for easy set-up, and mounts to tables or fixtures using sine keys and 1/2" bolts. Additional options are available for adding encoder for programmability or double start thread motor option to increase stroke speed.

This air motor option is available on most Kurt vises including the all-new DX6 vise, plus many Kurt single station vises, double station vises ranging in sizes of 4", 6", and 8" models and is also available on smaller vise models such model SCMX420.
