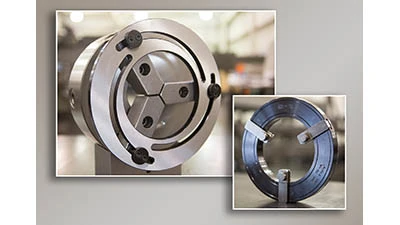

Springfield, Ohio –The Dillon jaw forming ring is a tool that provides a more uniform grip on the workpiece, maximizing jaw life for cutting and forming operations. Mounted in direct contact with the top jaw, the jaw forming ring preloads the chucking system. Jaw life for requalifying or reforming is maximized by lessening the amount of jaw stock removal required during parts setup. The device will provide a jaw surface true to the machine centerline, reduce setup times, and increase up-times for running machined parts.

Jaw forming rings are available for 4", 5", 6", 8", 10", 12" and 15" power chucks. They are capable of a wide range of OD and ID jaw formation. Self-centering action provides equal pressure on all jaws and compensates for jaw lift, even in worn chucks, resulting in better parts concentricity.
