HSR SCARA robots

HSR SCARA robots

October 10, 2017

Denso North America

http://www.densorobotics.com
Automation

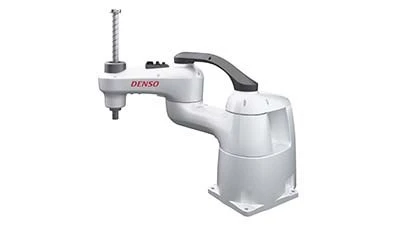

Long Beach, California – HSR four-axis selective compliance articulated robot arm (SCARA) robots use advanced vibration control, a rigid lightweight arm, and improved heat dissipation in the base unit for continuous high-speed performance and repeatability.

HSR apart can run at its maximum speed and maintain its highest repeatability without interruption, not just in short bursts.

Reduced shaft whip and settling time, along with a lighter-weight arm and an optimized arm structure, make the HSR more efficient than previous models, enabling it to accelerate faster, run continuously at its highest rated speed, and stop more precisely.

Standard cycle time (with a 2kg weight) of the HSR robot is from 0.28 to 0.31 sec. and repeatability is from ±0.01mm to ±0.12mm. Maximum payload capacity is 8kg, with available reaches of 480mm, 550mm, and 650mm.

Electrical wiring and air piping are internally embedded in the robot arm, preventing interference with peripherals. ANSI and CE compliance enables global deployment.
