Automated 3D scanning inspection system

Automated 3D scanning inspection system

September 1, 2017

CyberOptics Corporation

http://www.laserdesign.com
Quality/Metrology

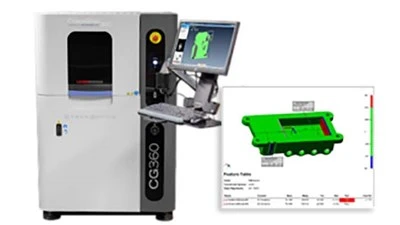

CyberOptics Corp.’s CyberGage360 is an automated 3D scanning inspection system. With just one button, a highly precise 360-degree 3D scan of complex parts along with a full 3D inspection report can be generated in less than three minutes. Little training is required for set-up, programming and operation, so anyone can check critical features and any deviation from CAD.

Incorporating CyberOptics’ proprietary 3D Multi-Reflection Suppression (MRS) technology, the automated CyberGage360 brings significantly greater accuracy and scanning speeds to the industrial parts inspection and reverse engineering markets – an unprecedented combination of speed, accuracy and simplicity that has yet to be seen in the industrial 3D scanning markets.

The CyberGage360 facilitates quality assurance by enabling any employee to be an inspector of In-Process QA and incoming /outgoing parts whether on the manufacturing floor, in the metrology lab, or engineering environment. The scanning and inspection system has a range of potential applications for aerospace, automotive, consumer electronics, medical, and other verticals, where high accuracy and high-speed throughput are vital. The system can effectively replace traditional gages, video and tactile coordinate measuring machines (CMMs) and can be used as an absolute or comparative measuring solution on the production floor or in the quality lab.
