High-pressure coolant systems

High-pressure coolant systems

July 11, 2017

CNC Indexing & Feeding Technologies

http://www.cncindexing.com
Coolants/Fluids

Mason, Ohio –Four high-pressure coolant systems from machine tool equipment and accessory supplier CNC Indexing & Feeding Technologies each are engineered to match the production and economic requirements of differing manufacturing environments. The addition of high-pressure coolant capability increases productivity by enabling use of increased feeds and speeds, boosting workpiece quality and surface finish, and reducing manufacturing costs via increased tool life.

The HPC-400 high-pressure coolant system is for lathe and vertical mill applications and for shops that have a limited budget but seek the advantages of high-pressure coolant. The system’s 8gpm gear pump for water-based coolant is adjustable from 75psi to 427psi, and an on-board transfer pump is standard.

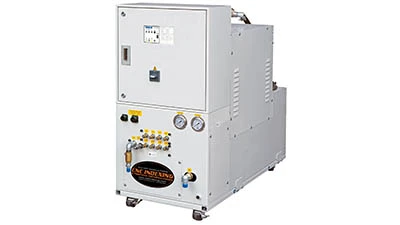

The HPC-1000 system (shown) offers versatility in applications on horizontal and vertical milling machines as well as lathes, and can be used in conjunction with other manufacturing equipment. The system’s 8gpm, 7.5hp gear pump system for oil- and water-based coolant is adjustable from 75psi to 1,000psi. An on-board transfer pump, 37-gallon reservoir tank, and 4 port outlets are standard.

The HPC-1500 coolant system achieves the higher flow rates needed to use tools with large coolant orifices. The system’s 8gpm, 7.5hp gear pump handles either oil- or water-based coolant and is adjustable from 75psi to 1,500psi. The unit features an on-board transfer pump, 37-gallon reservoir tank, and 4 port outlets.

The HPC-2000, CNC Indexing’s largest standard high-pressure coolant system, employs oil- based coolant only and is for CNC Swiss lathe machine tool applications. The system’s 6gpm, 10hp gear pump is adjustable from 75psi to 2000psi, and the unit features an on-board transfer pump, 37-gallon reservoir tank, 8 port outlets, and an oil chiller.

In addition to providing four different standard high pressure coolant systems, CNC Indexing also can custom-build systems tailored to specific production needs, such as those offering 2,500 psi and higher with multiple preset pressures.
