Tool holder for problem clearances

Tool holder for problem clearances

January 31, 2018

BIG Kaiser Precision Tooling

http://www.us.bigkaiser.com
Toolholding/Workholding

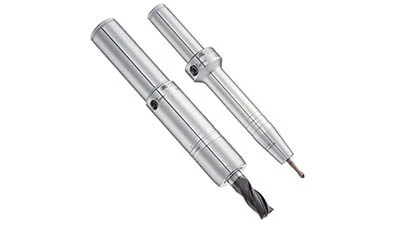

Hoffman Estates, Illinois – BIG KAISER’s HDC Straight Shank holder offers a slim design for superior balance, concentricity, and reaching into confined areas.

Hydraulic chucks are suitable tool holders for machining that requires high accuracy such as drills, reamers, ball mills, end mills, diamond reamers, and grinding tools in automotive, aerospace, medical, and die & mold applications.

HDC Straight Shank slim holders can be clamped into other base holders to extend overall reach of the tool assembly and avoid the need for special tools. The slim nose design provides the necessary clearance for use with deep workpiece access, making them suitable for 5-axis tool holding.

Only 1 hex key wrench is needed to clamp or loosen the cutting tool, making tool changes fast without special equipment. Every HDC toolholder is guaranteed to 0.00012" TIR at 5x diameter. Optional straight collets can be used to increase the range and versatility of each size.
